Garland 24" Restaurant Range | 4 Burner, 1 Oven | U24-4L

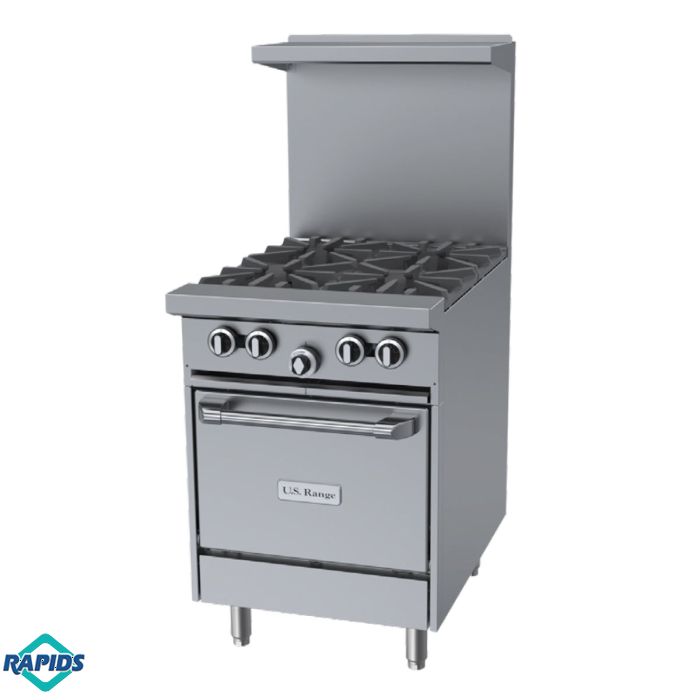

Garland U24-4L 24" Gas Restaurant Range | 4 Burners, Space-Saver Oven
Product Features:
- 24" gas restaurant range with 4 open burners
- Space-saver oven with ribbed porcelain interior
- 32,000 BTU per burner, 32,000 BTU oven burner
- Optional right- or left-side griddle with 18,000 BTU burner per 12" width
- 5/8" thick steel griddle plate with manual hi/lo control
- Cast iron top and ring grates, ergonomic split design
- Stainless steel front, sides, 5" plate rail, and 2-piece backguard with removable shelf
- 12" stamped drip trays with dimpled bottom
- 6" adjustable stainless steel legs
- Heavy-duty control knobs
- Easy-access oven pilot light
- Snap-action modulating oven thermostat
- CSA Flame, CSA Star, cCSAus, NSF certified
The Garland U24-4L 24" Restaurant Range is a compact, high-performance gas range ideal for professional kitchens with limited space. It features four 32,000 BTU cast-iron open burners with ergonomic split top and ring grates, and a space-saver oven with a 32,000 BTU cast-iron "H" style burner.
The oven includes a ribbed porcelain bottom, nickel-plated rack, and 3-position removable guides, controlled by a snap-action modulating thermostat for even baking. Stainless steel front, sides, 5" plate rail, and 2-piece backguard with removable shelf ensure durability, while large stamped drip trays, heavy-duty knobs, and 6" adjustable stainless steel legs make operation and maintenance simple. Optional griddle plates are available on the right or left side with 18,000 BTU burners and manual hi/lo controls, providing additional cooking versatility.
The Garland U24-4L 24" Restaurant Range from the U Series is a compact yet powerful solution for professional kitchens where space is at a premium. This 24-inch wide range features a large 27-inch deep worktop surface, providing ample room for multiple pots and pans, while delivering precise cooking performance for busy restaurant operations.
Equipped with four open top burners, each rated at 32,000 BTU, the range uses durable cast-iron top and ring grates for even heat distribution and long-lasting durability. The burners are ergonomically arranged in split cast-iron grates, allowing for easy handling and cleaning. For additional versatility, the range can accommodate a 5/8-inch thick steel griddle plate on the right side, powered by a manual hi/lo valve-controlled, 18,000 BTU cast-iron “H” style burner per 12-inch section, with a 4-1/4-inch wide grease trough for convenient maintenance. The griddle is front-serviceable and can also be installed on the left side if needed.
Beneath the cooktop is a space-saver oven with a 32,000 BTU cast-iron “H” style burner. The oven features a ribbed porcelain interior for the bottom and door, with aluminized steel top, sides, and back for durability. A snap-action modulating thermostat allows precise control from low to 500°F, while the nickel-plated oven rack with 3-position removable rack guides provides flexible cooking arrangements. The oven door includes a strong, “keep-cool” handle to ensure safety during operation.
Constructed with stainless steel front, sides, 5-inch plate rail, and 2-piece back guard with removable shelf, the U24-4L combines a professional appearance with long-lasting performance. The range is supported by 6-inch adjustable stainless steel legs, ensuring stability and proper alignment in any kitchen. Large, heavy-duty control knobs and an accessible oven pilot light allow for intuitive, precise operation. The reinforced chassis corners provide additional structural strength for heavy use.
With a total output of 160,000 BTU, the Garland U24-4L delivers high performance in a compact footprint, making it ideal for small to medium-sized commercial kitchens, cafes, and catering operations. Certified by NSF, CSA Star, CSA Flame, and cCSAus, this range meets strict commercial kitchen safety and sanitation standards, providing professional-grade cooking capability in a space-saving design.
| Product Weight (lbs) | 302 |
|---|---|
| Range Width | 0 - 36" |
| Product Width (in) | 23.63 |
| Product Depth (in) | 34.5 |
| Product Height (in) | 57 |
| Int Oven Width (in) | 20 |
| Int Oven Depth (in) | 26 |
| Int Oven Height (in) | 13 |
| BTU | 160000 |
| Exterior Material | Stainless Steel |
| Gas Connection | 3/4" NPT |
| Range Type | Gas Range |
| Power Type | Select NG or LP |
| Number of Burners | 4 |
| Number of Ovens | 1 |
| Oven Racks per Oven | 1 |
| Control Type | Manual |
| Casters/Legs | Legs |
| Manufacturer | Garland |
| MPN | U24-4L |
| SKU | 5G546 |
