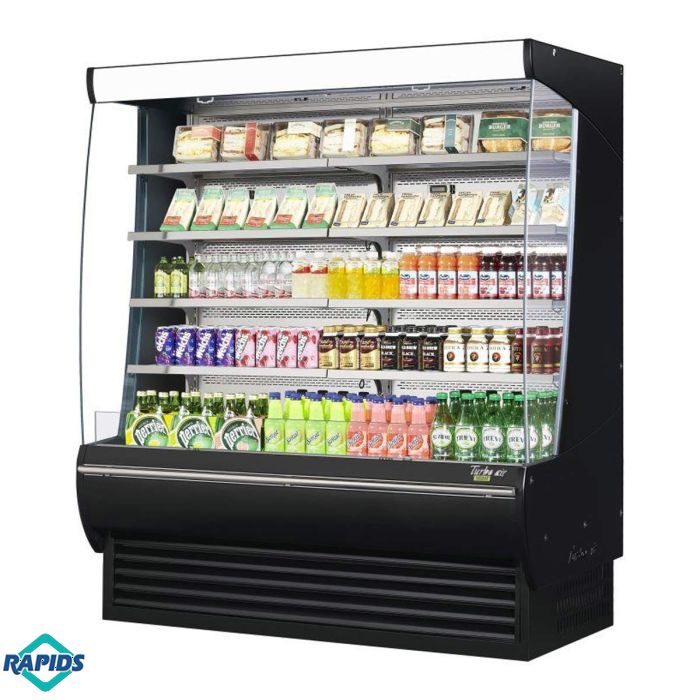

Turbo Air TOM-72DXB-N 68-3/4"W Extra Deep Vertical Open Display Merchandiser, 34.1 cu. ft.
Turbo Air 68-3/4"W Extra Deep Vertical Open Display Merchandiser, 34.1 cu. ft.
Product Features:
- Width: 68-3/4"
- Capacity: 34.1 cu. ft.
- LED advertising top panel
- (4) tiers with (8) stainless steel shelves
- LED interior lighting under each shelf
- Self-cleaning condenser — automatic daily brushing
- Hot gas condensate system
- Energy-saving night curtain standard
- Tempered glass front shield and side walls
- 300 stainless steel interior
- Non-peel anti-rust exterior coating
- Perforated interior back wall and top — improved airflow
- Front air intake / rear air discharge
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
The Turbo Air TOM 68-3/4"W extra-deep vertical open display merchandiser is the widest model in the TOM DXB series at 34.1 cu. ft. — a four-compressor unit running on 220V that supports the refrigeration load of four display tiers with eight stainless steel shelves. The LED advertising top panel, self-cleaning condenser, hot gas condensate system, night curtain, and tempered glass front shield and side walls are standard. 300 stainless steel interior, non-peel anti-rust black exterior coating.
Front air intake and rear air discharge. R-290 hydrocarbon refrigerant. (4) 3/4 HP, 220V/60/1-ph, 18 amps, NEMA 6-20P. cETLus, ETL-Sanitation.
The Turbo Air TOM 68-3/4"W extra-deep vertical open display merchandiser is the maximum-width model in the TOM DXB line — a 34.1 cu. ft. unit driven by four compressors on a dedicated 220V circuit, providing the refrigeration capacity to maintain consistent temperature across four display tiers and eight stainless steel shelves of open product. At this scale, the TOM-72DXB is a retail centerpiece: a full-run display installation that can anchor a beverage or grab-and-go program in convenience stores, supermarket perimeter locations, and large-format food service environments.
Four tiers with eight shelves provides the maximum product organization and display variety of any single TOM DXB unit — categories can be separated by tier, products can be organized by type within tiers, and the full 34.1 cu. ft. of chilled display space creates an impressive, well-stocked presentation that drives category sales. The LED advertising top panel extends the unit's visual presence vertically above the display area, projecting branding and product category messaging to customers approaching from across the store floor.
Four dedicated 3/4 HP compressors — one per tier — provide independent refrigeration control that ensures temperature stability across the full display height regardless of ambient conditions or access frequency at different tier levels. The self-cleaning condenser on each refrigeration system maintains efficiency automatically. Hot gas condensate management and the energy-saving night curtain complete the operational system.
Non-peel anti-rust black exterior coating on all exposed surfaces. 300 stainless steel interior. R-290 hydrocarbon refrigerant. 220V/60/1-ph, 18 amps, NEMA 6-20P. cETLus, ETL-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 890 |
|---|---|
| Interior Width (inches) | 66.38 |
| Interior Depth (inches) | 21.25 |
| Interior Height (inches) | 48.75 |
| Interior Volume (cu. ft.) | 34.1 cu. ft. |
| Amps (A) | 18 |
| Voltage | 220v/60hz/1ph |
| Plug Type | NEMA 6-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | Stainless Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 8 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-72DXB-N |
| SKU | 6R873 |
