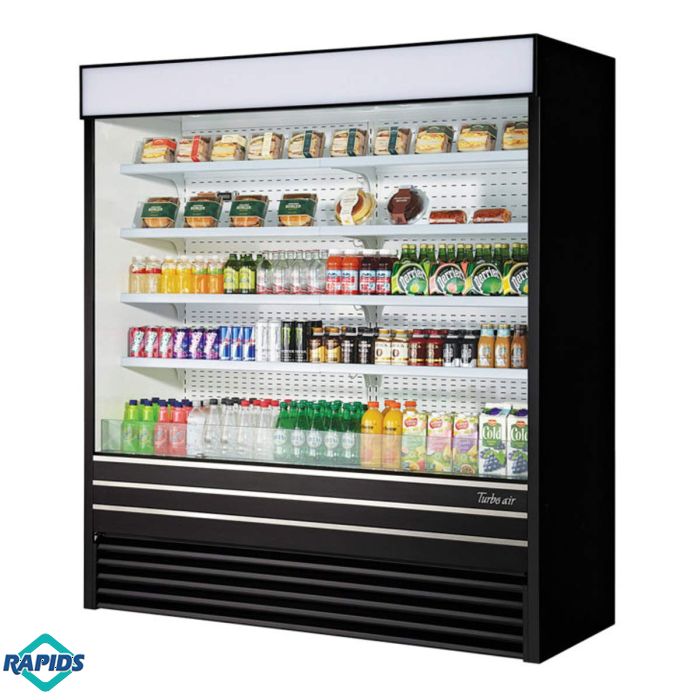

Turbo Air TOM-72EB-N 72"W Vertical Air Curtain Open Display Merchandiser, 37.1 cu. ft.
Turbo Air 72"W Vertical Air Curtain Open Display Merchandiser, 37.1 cu. ft.
Product Features:
- Width: 72"
- Capacity: 37.1 cu. ft.
- Black exterior, white coated galvanized steel interior
- (8) adjustable white coated galvanized steel shelves
- LED interior lighting under each shelf
- Self-cleaning condenser — automatic daily brushing
- Energy-saving night curtain standard
- Front air intake / rear air discharge
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
- Self-contained refrigeration
The Turbo Air TOM 72"W vertical air curtain open display merchandiser is the widest model in the TOM EB series at 37.1 cu. ft. — a four-compressor unit on 220V providing the refrigeration capacity for eight adjustable shelves across the 72" display width. Air curtain refrigeration system, self-cleaning condenser, LED interior lighting, and energy-saving night curtain standard. White coated galvanized steel interior and shelves, black exterior.
Front air intake and rear air discharge. R-290 hydrocarbon refrigerant. (4) 3/4 HP, 220V/60/1-ph, 18 amps, NEMA 6-20P. cCSAus, CSA-Sanitation.
The Turbo Air TOM 72"W vertical air curtain open display merchandiser is the maximum-width configuration in the TOM EB line — 37.1 cu. ft. of open refrigerated display across a 72" span with eight adjustable shelves providing extensive product facings for a grab-and-go beverage, prepared food, or packaged snack program. Four 3/4 HP compressors on a 220V circuit provide the refrigeration capacity to maintain consistent temperature across the full display volume.
At 72", this merchandiser creates a category destination presence in the retail environment — a full-run display installation that signals dedicated category space and draws customers from distance. The white coated galvanized steel interior and shelves provide a bright, contrast-enhancing backdrop across the full 72" width, ensuring that product packaging and labeling is visible and readable from the approach distance that a 72" display occupies in the store footprint.
Eight adjustable shelves allow detailed category organization — different beverage brands at different heights, product sizes organized by tier, or multiple grab-and-go food categories separated across the shelf tiers. The adjustable nature of all eight shelves means the planogram can evolve as the product mix changes without purchasing new fixtures.
The air curtain system reduces ambient air infiltration during customer access, and the night curtain closes the full 72" display front during off-hours for maximum energy savings in what is otherwise a very large open display area. Self-cleaning condenser. R-290 hydrocarbon refrigerant. 220V/60/1-ph, 18 amps, NEMA 6-20P. cCSAus, CSA-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 723 |
|---|---|
| Interior Width (inches) | 68.5 |
| Interior Depth (inches) | 15.5 |
| Interior Volume (cu. ft.) | 37.1 cu. ft. |
| Amps (A) | 18 |
| Voltage | 220v/60hz/1ph |
| Plug Type | NEMA 6-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | ABS Coated Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 8 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-72EB-N |
| SKU | 6R893 |
