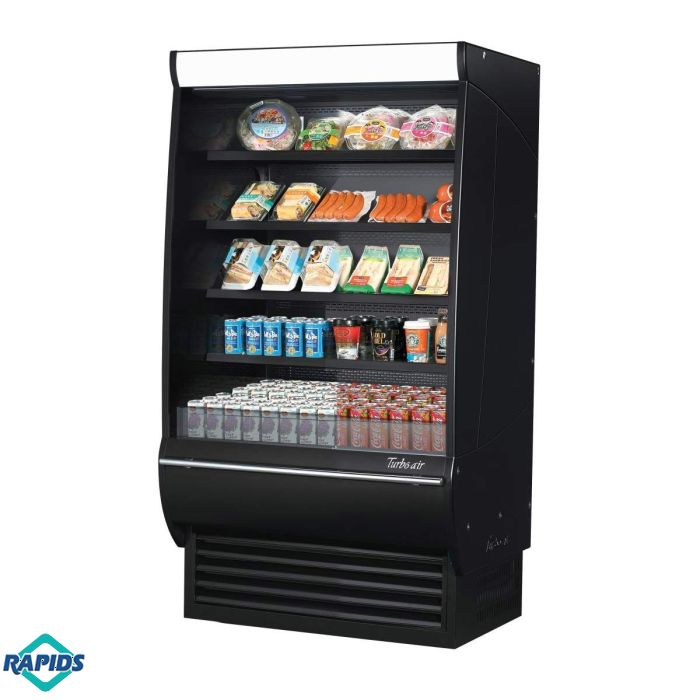

Turbo Air TOM-36DXB-SP(-A)-N 36"W Extra Deep Vertical Open Display Merchandiser, 17.1 cu. ft.
Turbo Air 36"W Extra Deep Vertical Open Display Merchandiser, 17.1 cu. ft.
Product Features:
- Width: 36"
- Capacity: 17.1 cu. ft.
- LED advertising top panel
- (4) adjustable stainless steel shelves
- LED interior lighting under each shelf
- Self-cleaning condenser — automatic daily brushing
- Energy-saving night curtain standard
- Tempered glass front shield
- Solid side panels — specify interior: SS (SP-N) or black coated (SP-A-N)
- Non-peel anti-rust exterior coating — black
- Perforated interior back wall and top — improved airflow
- Front air intake / rear air discharge
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
- Bottom-mount self-contained refrigeration
- Plug-in installation
The Turbo Air TOM-36DXB-SP is the solid side panel variant of the 36" extra-deep vertical open display merchandiser — same 17.1 cu. ft. capacity and DXB specification, with solid side panels in place of glass sides for end-of-run or wall-adjacent placement where side visibility is not needed. Interior finish is specified at order: stainless steel interior (SP-N) or black coated interior (SP-A-N). Self-cleaning condenser, LED advertising top panel, (4) adjustable stainless steel shelves, LED interior lighting, and energy-saving night curtain standard.
R-290 hydrocarbon refrigerant, non-peel anti-rust exterior coating. (2) 3/4 HP, 115V/60/1-ph, 15.5 amps, NEMA 5-20P. cETLus, ETL-Sanitation.
The Turbo Air TOM-36DXB-SP brings the extra-deep vertical open display format to end-of-run and wall-placement installations with solid side panels in place of the glass side walls of the standard DXB model. Where glass side walls are appropriate for free-standing mid-floor placements where side visibility adds to product exposure, solid side panels are the correct specification for installations against a wall, in a gondola end position, or where the case sides face a structure rather than store traffic.
The choice of interior finish for the solid side panels — stainless steel (SP-N) or black coated (SP-A-N) — allows the installation to match the overall aesthetic program of the retail environment. Stainless steel interior with solid side panels creates a premium, professional appearance appropriate for upscale grocery and specialty food retail; black coated interior provides a dramatic, high-contrast backdrop that makes product colors and packaging pop visually.
All functional specifications carry over from the standard 36" DXB: 17.1 cu. ft. of extra-deep display capacity, LED advertising top panel, four adjustable stainless steel shelves, LED under-shelf lighting, self-cleaning condenser with automatic daily brushing, hot gas condensate management, and the energy-saving night curtain standard. The DXB cabinet's extra depth advantage — more product per shelf versus standard-depth cases — is preserved in the solid side panel variant.
Non-peel anti-rust exterior coating. R-290 hydrocarbon refrigerant. Bottom-mount self-contained refrigeration. (2) 3/4 HP, 115V/60/1-ph, 15.5 amps, NEMA 5-20P. cETLus, ETL-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 488 |
|---|---|
| Interior Width (inches) | 33.25 |
| Interior Depth (inches) | 21.25 |
| Interior Height (inches) | 48.75 |
| Interior Volume (cu. ft.) | 17.1 cu. ft. |
| Amps (A) | 15.5 |
| Voltage | 115v/60hz/1ph |
| Plug Type | NEMA 5-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | Stainless Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 4 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-36DXB-SP(-A)-N |
| SKU | 6R908 |
