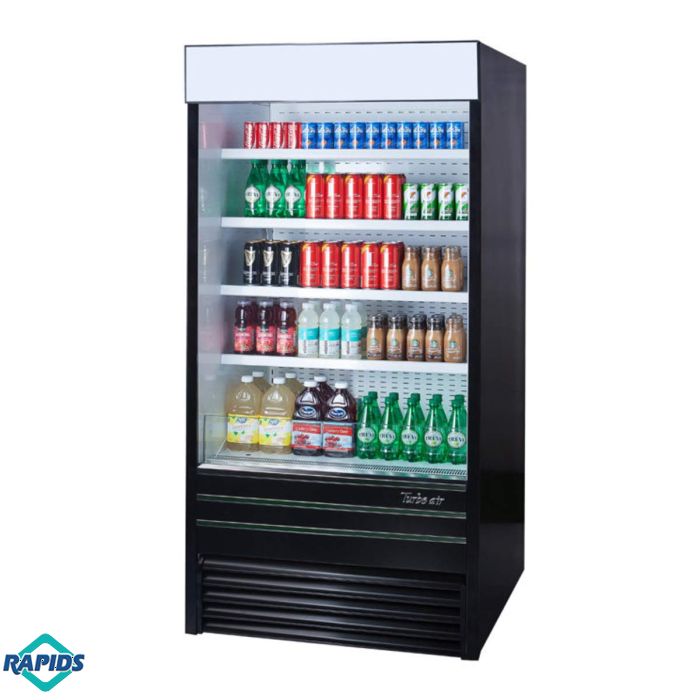

Turbo Air TOM-36EB-N 36"W Vertical Air Curtain Open Display Merchandiser, 16.5 cu. ft.
Turbo Air 36"W Vertical Air Curtain Open Display Merchandiser, 16.5 cu. ft.
Product Features:
- Width: 36"
- Capacity: 16.5 cu. ft.
- Configuration: Vertical air curtain open display
- Black exterior, white coated galvanized steel interior
- White coated galvanized steel solid shelves
- LED interior lighting under each shelf
- Self-cleaning condenser — automatic daily brushing
- Energy-saving night curtain standard
- Front air intake / rear air discharge
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
- Self-contained refrigeration
The Turbo Air TOM 36"W vertical air curtain open display merchandiser delivers 16.5 cu. ft. of open refrigerated display with an air curtain system that reduces ambient air intrusion and energy consumption compared to fully open cases. The self-cleaning condenser brushes automatically daily. LED interior lighting, energy-saving night curtain, white coated galvanized steel interior and shelves, and black exterior. Self-contained with self-cleaning condenser, CFC-free polyurethane insulation, and R-290 hydrocarbon refrigerant.
Front air intake and rear air discharge. (2) 3/4 HP, 115V/60/1-ph, 15.5 amps, NEMA 5-20P. cCSAus, CSA-Sanitation.
The Turbo Air TOM 36"W air curtain vertical open display merchandiser combines open product access with the air curtain refrigeration approach that uses a circulated air stream to create a thermal barrier at the open display front — reducing ambient warm air infiltration compared to fully open cases while maintaining the product accessibility that drives impulse sales in grab-and-go retail environments.
The air curtain system's thermal barrier effect reduces the temperature recovery load after customer access events. In a fully open display case, every access event draws ambient warm air into the display volume that the refrigeration system must then remove. The air curtain reduces the volume of ambient air that enters during each access event, allowing the refrigeration system to maintain setpoint temperature more efficiently through periods of frequent access.
The white coated galvanized steel interior and shelves provide a bright, clean backdrop that maximizes product visibility — white interiors create a contrast background that makes product packaging and labeling stand out, particularly for dark-labeled products, that can be harder to read against stainless steel interiors. The combination of white interior and LED under-shelf lighting creates a well-lit, high-visibility display environment.
The self-cleaning condenser provides automatic daily brushing that maintains condenser efficiency through the dust accumulation of high-traffic commercial environments. The energy-saving night curtain closes the display front during off-hours to further reduce overnight energy consumption. R-290 hydrocarbon refrigerant with zero ozone depletion potential and minimal global warming impact.
Black exterior for a bold, contemporary display presence. (2) 3/4 HP, 115V/60/1-ph, 15.5A, NEMA 5-20P. cCSAus, CSA-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 498 |
|---|---|
| Interior Width (inches) | 32.75 |
| Interior Depth (inches) | 15.5 |
| Interior Volume (cu. ft.) | 16.5 cu. ft. |
| Amps (A) | 15.5 |
| Voltage | 115v/60hz/1ph |
| Plug Type | NEMA 5-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | ABS Coated Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 4 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-36EB-N |
| SKU | 6R878 |
