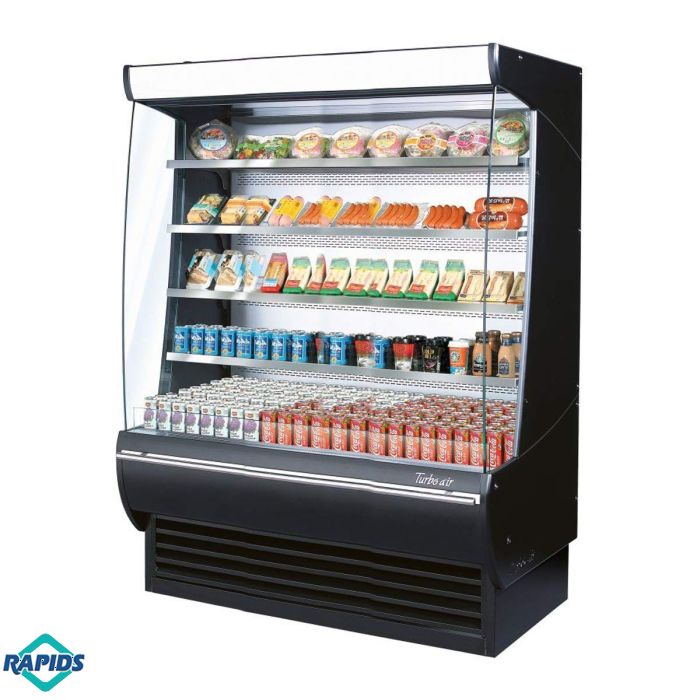

Turbo Air TOM-60DXB-N 59-5/8"W Extra Deep Vertical Open Display Merchandiser, 29.4 cu. ft.
Turbo Air 59-5/8"W Extra Deep Vertical Open Display Merchandiser, 29.4 cu. ft.
Product Features:
- Width: 59-5/8"
- Capacity: 29.4 cu. ft.
- LED advertising top panel
- (4) adjustable stainless steel shelves
- LED interior lighting under each shelf
- Self-cleaning condenser — automatic daily brushing
- Hot gas condensate system
- Energy-saving night curtain standard
- Tempered glass front shield and side walls
- 300 stainless steel interior
- Non-peel anti-rust exterior coating
- Perforated interior back wall and top — improved airflow
- Front air intake / rear air discharge
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
The Turbo Air TOM extra-deep vertical open display merchandiser delivers 29.4 cu. ft. of open refrigerated display in a black exterior format with an LED advertising top panel that communicates the case's contents to approaching customers. The extra-deep cabinet design provides greater product depth per shelf versus standard vertical cases, increasing total display capacity within the footprint. Self-cleaning condenser, (4) adjustable stainless steel shelves, hot gas condensate system, and energy-saving night curtain standard. Tempered glass front shield and side walls, LED interior lighting, 300 stainless steel interior, non-peel anti-rust exterior coating.
Front air intake and rear air discharge. R-290 hydrocarbon refrigerant. (2) 3/4 HP, 115V/60/1-ph, 15.5 amps, NEMA 5-20P. cETLus, ETL-Sanitation.
The Turbo Air TOM extra-deep vertical open display merchandiser is designed for maximum display impact in high-traffic commercial settings — a full-height open display case in black with an LED advertising top panel that projects branding and product messaging above the case, visible to customers approaching from distance. The combination of the LED advertising panel, the tempered glass display environment, and the open-access design creates an integrated merchandising system rather than just a refrigeration unit.
The extra-deep cabinet specification is the differentiating feature from standard vertical open display cases. Greater shelf depth allows more product to be displayed in each shelf tier — more facing units per shelf, deeper stacking of products, and the ability to display items that wouldn't fit in shallower standard cases. This increased depth translates directly to display capacity and the ability to sustain a fully stocked appearance through longer periods between restocking, which is a visual merchandising quality indicator in any high-traffic retail setting.
Four adjustable stainless steel shelves provide configuration flexibility for the range of product heights encountered in grab-and-go beverage, food, and packaged product categories. The hot gas condensate system eliminates manual condensate management. The energy-saving night curtain reduces overnight energy consumption by closing the open display front during non-service hours, when ambient air intrusion would otherwise continuously load the refrigeration system.
The self-cleaning condenser automatic brushing cycle maintains condenser efficiency through the dust accumulation that characterizes high-traffic locations without requiring manual cleaning or service calls between scheduled maintenance. Non-peel anti-rust exterior coating protects the black exterior finish through the moisture and cleaning chemical exposure of commercial retail environments. Bottom-mount self-contained refrigeration and R-290 hydrocarbon refrigerant.
(2) 3/4 HP, 115V/60/1-ph, 15.5A, NEMA 5-20P. cETLus, ETL-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 635 |
|---|---|
| Interior Width (inches) | 57.25 |
| Interior Depth (inches) | 21.25 |
| Interior Height (inches) | 48.75 |
| Interior Volume (cu. ft.) | 29.4 cu. ft. |
| Amps (A) | 15.5 |
| Voltage | 115v/60hz/1ph |
| Plug Type | NEMA 5-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | Stainless Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 4 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-60DXB-N |
| SKU | 6R868 |
