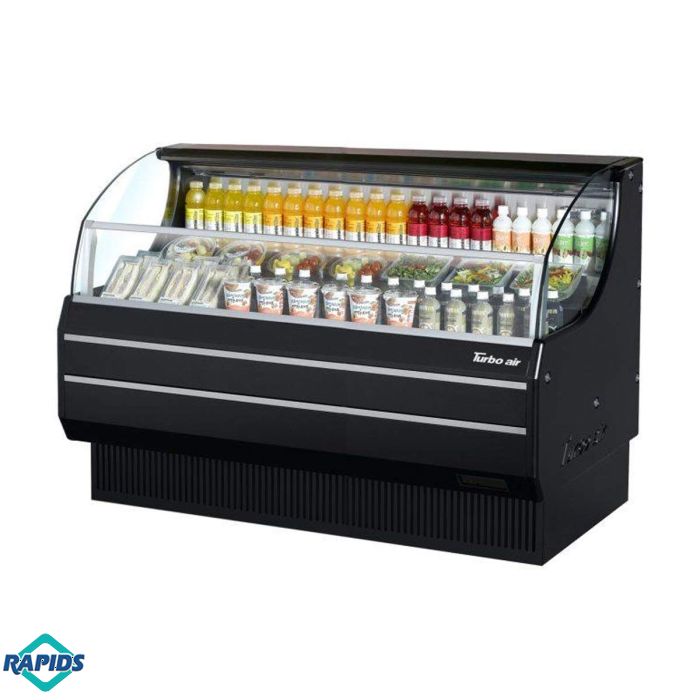

Turbo Air TOM-75SW(B)-N 75-3/4"W Horizontal Open Display Merchandiser, 13.5 cu. ft.
Turbo Air 75-3/4"W Horizontal Open Display Merchandiser, 13.5 cu. ft.
Product Features:
- Width: 75-3/4"
- Capacity: 13.5 cu. ft.
- Configuration: Horizontal open display — slim-line
- Temperature range: 38–40°F
- (3) stainless steel bottom shelves
- Self-cleaning condenser — automatic daily brushing
- Tempered glass front shield and side walls
- LED interior lighting
- Stainless steel interior — back wall and deck pans
- Perforated interior back wall and top — improved airflow
- Front air intake / rear air discharge — wall-placement capable
- CFC-free high-density polyurethane insulation
- R-290 hydrocarbon refrigerant (ODP-0, GWP-3)
- Self-contained, plug-in installation
The Turbo Air TOM slim-line 75-3/4"W horizontal open display merchandiser provides 13.5 cu. ft. of refrigerated display capacity for salads, sandwiches, desserts, and beverages at 38–40°F. The self-cleaning condenser automatically brushes daily, preventing the dust accumulation that degrades refrigeration performance and causes system failure. Tempered glass front shield and side walls maximize product visibility while reinforcing structural safety. Three stainless steel bottom shelves, LED interior lighting, perforated interior back wall and top for improved airflow, and CFC-free polyurethane insulation. R-290 hydrocarbon refrigerant — zero ozone depletion, near-zero global warming potential.
Front air intake and rear air discharge allows placement against walls. Self-contained, plug-in installation. Stainless steel interior including back wall and deck pans. Exterior finish specified at order. (2) 3/4 HP, 115V/60/1-ph, 14.7 amps, NEMA 5-20P. cETLus, ETL-Sanitation.
Horizontal open display merchandisers are the front-line tool for impulse sales of grab-and-go refrigerated items — salads, sandwiches, parfaits, beverages, and desserts positioned at eye level and arm reach in high-traffic areas. The Turbo Air TOM slim-line series is engineered specifically for this application: a low-profile format that keeps products accessible across the full width without requiring customers to reach deep into a case, with the glass-enclosed display environment that shows off refrigerated merchandise without the energy penalty of an open-front vertical case.
The self-cleaning condenser is the maintenance feature that separates this unit from standard open display merchandisers. Commercial condensers in high-traffic environments accumulate dust continuously — dust reduces heat rejection efficiency, forces the compressor to work harder, raises operating temperatures, and ultimately causes system failure or reduced product temperature compliance. The automatic daily brushing cycle keeps the condenser performing at specification without requiring technician access or manual cleaning between preventive maintenance visits.
R-290 hydrocarbon refrigerant operates at zero ozone depletion potential and near-zero global warming potential (GWP-3), meeting DOE energy conservation standards and EPA SNAP program approval. Hydrocarbon refrigerants also enable efficient refrigeration at lower charge weights compared to legacy refrigerants, reducing both material cost and environmental impact across the unit's service life.
The tempered glass front shield and side walls provide structural safety while maximizing display visibility from multiple angles — customers can see merchandise from the front and sides as they approach, creating the impulse purchase trigger that open display is designed for. LED interior lighting illuminates the display contents efficiently and without the heat generation of fluorescent alternatives.
Stainless steel interior throughout — back wall, deck pans, and shelves — provides sanitation compliance and easy cleaning. Perforated interior back wall and top optimize the airflow pattern that maintains consistent temperature across the full display depth. Front air intake and rear air discharge allows installation directly against a wall without ventilation clearance gaps. Exterior finish specified at order. (2) 3/4 HP, 115V/60/1-ph, 14.7 amps, NEMA 5-20P. cETLus, ETL-Sanitation.
WARNING - CA Prop 65 | Product Weight (lbs) | 498 |
|---|---|
| Interior Width (inches) | 73.25 |
| Interior Depth (inches) | 24 |
| Interior Height (inches) | 13 |
| Interior Volume (cu. ft.) | 13.5 cu. ft. |
| Amps (A) | 14.7 |
| Voltage | 115v/60hz/1ph |
| Plug Type | NEMA 5-20P |
| Horsepower | 3/4 |
| Casters/Legs | Legs |
| Interior Material | Stainless Steel |
| Exterior Material | Black Powder Coated Steel |
| Refrigerator Color | Black |
| Compressor Mount | Bottom |
| Refrigerator Shelves | 3 |
| Refrigerant Type | R290 |
| Standard Warranty | 2yr Parts; 5yr Compressor |
| Manufacturer | Turbo Air |
| MPN | TOM-75SW(B)-N |
| SKU | 6R818 |
