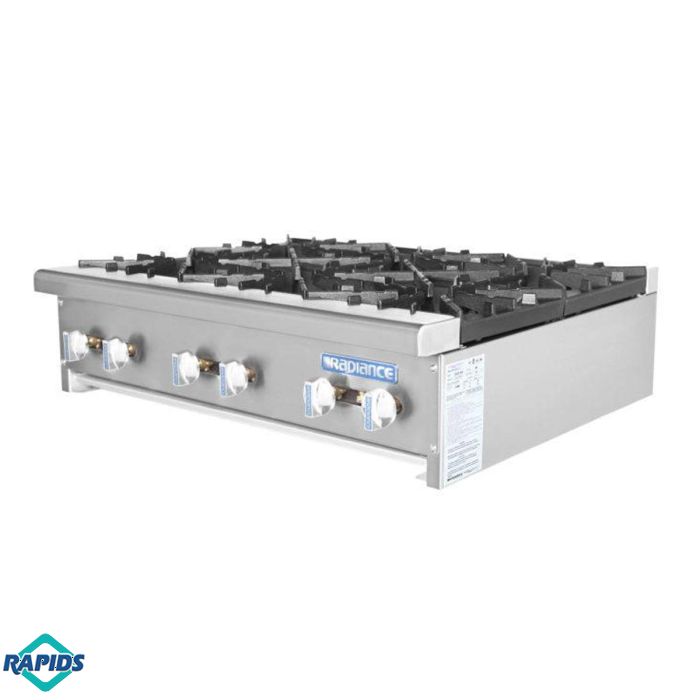

Turbo Air TAHP-36-6 Radiance 36" Gas Hot Plate, 6-Burner
Turbo Air Radiance TAHP-36-6 36" Commercial Gas Hot Plate, 6 Burners
Product Features:
- Width: 36", Burners: 6
- BTU per burner: 32,000, Total BTU: 192,000
- 16 ga. stainless steel front, sides, and 4" front top ledge
- Lift-off 2-piece burner — easy cleaning
- 12"x12" removable heavy cast iron grates — grooved design
- Grooved grate design directs heat to cooking surface
- Grates designed to allow pot sliding without lifting
- Adjustable standing pilot per burner
- Removable full-width grease pan
- Bullnose stainless steel front extension
- Heat-resistant PPS on/off knob
- 3/4" rear gas connection
- Gas pressure regulator included
- 2" stainless steel legs
- CSA, CSA-Sanitation
The Turbo Air Radiance 36" gas hot plate features 6 center-concentrated 32,000 BTU/hr burners (192,000 BTU total) in a 16 ga. stainless steel housing designed for high-performance countertop gas cooking. The lift-off two-piece burner design allows easy cleaning of the burner assembly. Removable 12"x12" heavy cast iron top grates with grooved design direct heat efficiently to the cooking surface and allow pots to slide without lifting. Adjustable standing pilot for each burner, removable full-width grease pan, bullnose stainless steel front extension.
Heat-resistant PPS on/off knobs, 3/4" rear gas connection, gas pressure regulator included, 2" stainless steel legs. CSA, CSA-Sanitation.
The Turbo Air Radiance 36" gas hot plate is the countertop open-burner cooking platform for commercial kitchens that need high-BTU gas cooking capability without a full range installation. At 6 burners producing 32,000 BTU/hr each, the unit delivers 192,000 BTU total — output appropriate for heavy-duty stock pot cooking, rapid boiling, sautéing, sauce work, and any high-heat cooking application that demands consistent, powerful gas heat.
The center-concentrated burner design focuses heat output at the center of each 12"x12" grate zone — the most efficient heat delivery geometry for round-bottom pots and woks where center heat is the relevant cooking surface. This design produces faster heating and better energy utilization than burners that distribute heat evenly across the full grate area.
The lift-off two-piece burner construction enables thorough cleaning after service. Burner components that are permanently fixed require cleaning around and between parts in position; the lift-off design allows each burner assembly to be removed from the cooking surface for direct access cleaning. The removable full-width grease pan catches drippings across the full cooking width and slides out for emptying and cleaning without disassembling the unit.
Cast iron grates are the correct material for commercial gas cooking surfaces. Cast iron's thermal mass absorbs and retains heat, moderating temperature fluctuations when cold product is placed on the grate and providing a stable cooking surface through continuous production. The grooved design on the top face of each grate channels heat directly upward toward the cooking vessel, improving the efficiency of heat transfer from the burner through the grate to the pot bottom. The grate design also allows pots to slide from one position to another without lifting — important during continuous cooking operations where repositioning pots without removing them from the heat is a workflow efficiency.
Adjustable standing pilots provide reliable ignition for each burner. Heat-resistant PPS knobs maintain control integrity in the high-temperature environment of a commercial cooking line. 3/4" rear gas connection with included regulator. 2" stainless steel legs. CSA and CSA-Sanitation certified.
WARNING - CA Prop 65 | Product Weight (lbs) | 231 |
|---|---|
| Product Width (in) | 36 |
| Product Depth (in) | 30 |
| Product Height (in) | 10 |
| BTU | 192000 |
| Exterior Material | Stainless Steel |
| Griddle Type | Hot Plate - Gas |
| Gas Connection | 3/4" NPT |
| Power Type | Select NG or LP |
| Control Type | Manual |
| Standard Warranty | 1yr Parts/Labor |
| Manufacturer | Turbo Air |
| MPN | TAHP-36-6 |
| SKU | 5R023 |
