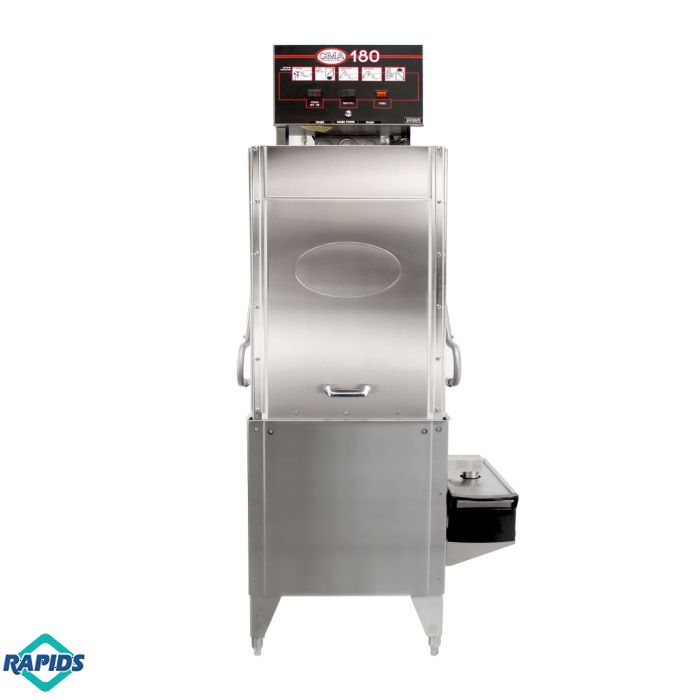

CMA 180-S Door Type High Temp Sanitizing Dishwasher, Straight-Through, 60 Racks/hr
CMA 180 Door Type High Temp Dishwasher | Straight-Through | 60 Racks/hr
Product Features:
- Dimensions: 25-1/2"W x 25"D x 60"H
- Design: Straight-through
- Capacity: 60 racks/240 covers per hour
- Water usage: 0.82 gal per cycle
- High-temperature sanitizing — 180°F final rinse every cycle
- Safe-T-Temp feature — confirms sanitizing temp every cycle
- Industrial 7 kW chemical-resistant electric heater
- Poly Pro scrap accumulator — automatic soil purging
- External scrap tray — easy removal for dumping
- Auto start/stop
- Field convertible for wide range of applications
- Built-in delime switch
- Upper and lower stainless steel wash arms with reinforced end caps
- Single point electrical connection
- Automatic tank fill
- 1 HP wash pump
- Stainless steel construction
The CMA 180 door-type high-temperature dishwasher in straight-through configuration delivers 60 racks/240 covers per hour at 0.82 gallon of water per cycle — an exceptionally economical water usage rate for high-temperature door-type performance. The industrial 7 kW electric heater provides proven durability beyond standard commercial heater alternatives, and the Safe-T-Temp feature ensures every cycle reaches 180°F sanitizing rinse temperature.
The automatic soil purging system filters wash water and collects plate debris in an external Poly Pro scrap tray that removes easily for dumping — keeping wash water cleaner throughout service and extending cleaning intervals. Field convertible for a wide range of installation applications. Built-in delime switch. Auto start/stop for safe, operator-friendly operation. Stainless steel construction throughout. NSF, cULus, ENERGY STAR.
The CMA 180 door-type high-temperature dishwasher in straight-through configuration delivers 60 racks/240 covers per hour at 0.82 gallons of water per cycle — a throughput and water efficiency combination that makes it one of the more economical high-temperature door machines in its class. High-temperature sanitizing at 180°F eliminates chemical sanitizer from the warewashing process, reducing ongoing chemical cost, eliminating the need for chemical monitoring and testing strips, and removing chemical residue concerns from the final rinse. The straight-through configuration allows racks to enter from one side and exit the other, supporting the linear dishwashing workflow that high-volume operations use to keep soiled and clean dish paths separate.
The industrial 7 kW electric heater is a key durability specification. Commercial dishwashers cycle through thousands of heat-up and cool-down cycles over their service life, and the heater element is the component most frequently subjected to this thermal stress. The industrial-grade element used in the CMA 180 is specified to withstand this cycling more reliably than the commercial-grade elements used in many competing machines — translating to fewer heater failures and lower long-term maintenance costs. The Safe-T-Temp feature confirms 180°F rinse compliance on every cycle.
The Poly Pro scrap accumulator system filters wash water automatically and traps plate debris in an external tray that removes easily for dumping without stopping the machine. Keeping food soil out of the wash water throughout service maintains wash quality as rack volume increases — standard recirculating machines without active soil removal produce progressively dirtier wash results as debris accumulates in the tank. The auto start/stop system makes operation safe and simple for any staff member, and the field-convertible design allows the machine to be adapted for different installation configurations without factory modification.
Upper and lower stainless steel wash arms with reinforced end caps deliver the spray coverage needed for thorough cleaning across all rack positions. The built-in delime switch enables periodic acid descaling without service calls. Single-point electrical connection simplifies installation. Automatic tank fill. All stainless steel construction for corrosion resistance and longevity. 1 HP wash pump. NSF, cULus, ENERGY STAR.
WARNING - CA Prop 65 | Dishwasher Type | High Temp |
|---|---|
| Racks Per Hour | 51 - 70 |
| Warewashing Features | Built-in Booster Heater, Delime Cycle, Automatic Cleaning Cycle |
| Voltage | 208-240v/60hz/1ph |
| Amps (A) | 88 |
| Product Weight (lbs) | 338 |
| Product Width (in) | 25.5 |
| Product Length (in) | 25 |
| Product Height (in) | 60 |
| NSF Listed | Yes |
| Energy Star | Yes | Rebate Finder Here |
| Standard Warranty | 1yr parts/labor |
| Spec Sheet | View PDF |
| Manufacturer | CMA Dishmachines |
| MPN | 180-S |
| SKU | 3C380 |
