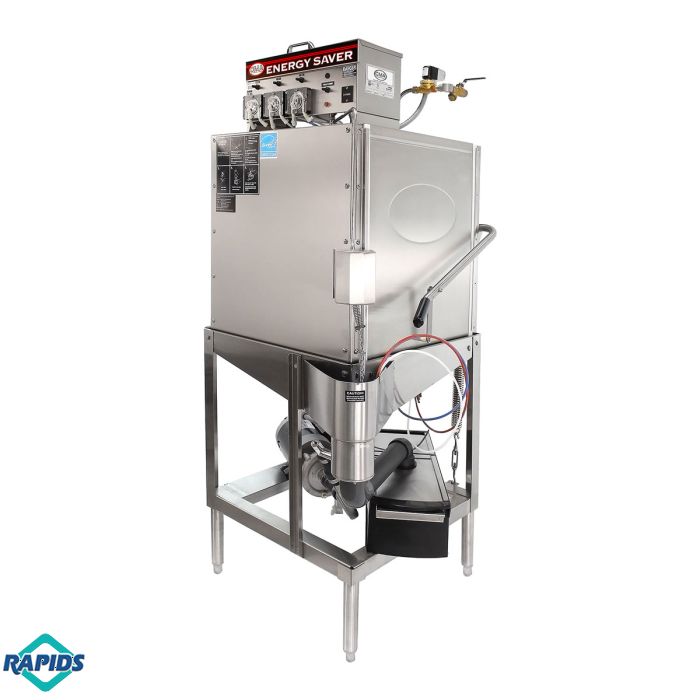

CMA E-AH-EXT Door Type Low Temp Chemical Sanitizing Dishwasher, Straight-Through, 40 Racks/hr
CMA Energy Mizer Low Temp Dishwasher | Straight-Through | 40 Racks/hr
Product Features:
- Width: 25-3/4"
- Design: Straight-through
- Capacity: 40 racks/160 covers per hour
- Door clearance: 20-1/2"
- Low-temperature chemical sanitizing — no booster heater needed
- Poly Pro scrap accumulator
- Auto start/stop
- 1 HP wash pump
- Stainless steel construction
- Certified: ETL-Sanitation, cULus
The CMA Energy Mizer door-type low-temperature chemical sanitizing dishwasher, straight-through design, delivers 40 racks/160 covers per hour with 20-1/2" door clearance. Low-temperature chemical sanitizing eliminates the booster heater requirement — reducing installation complexity, energy consumption, and infrastructure costs compared to high-temperature machines.
The Poly Pro scrap accumulator captures food soil before it enters the drain system, keeping wash water cleaner and reducing cleaning frequency. Auto start/stop operation. Stainless steel construction throughout. 1 HP wash pump. ETL-Sanitation, cULus.
The CMA Energy Mizer door-type low-temperature chemical sanitizing dishwasher, straight-through design, delivers 40 racks/160 covers per hour with a 20-1/2" door clearance — the largest door opening in its class, accommodating oversized commercial plates, tall glasses, and serving trays that smaller-opening machines cannot handle without extra handling steps. Low-temperature chemical sanitizing is the fundamental design choice that affects the machine's installation requirements, operating costs, and suitability for specific operations. The straight-through design places the load and unload openings on opposite sides, supporting the linear dish flow that keeps soiled and clean paths separated in high-efficiency dishwashing operations.
Low-temperature machines sanitize using chemical sanitizer in the final rinse rather than heat — which means no booster heater is required. This eliminates the electrical capacity requirement (typically 15–25 amps at 240V) that a booster heater adds to the installation, reducing the electrical infrastructure investment when the machine is being installed in a location without existing high-amperage service. Chemical sanitizer cost replaces the energy cost of water heating for the sanitizing rinse, and the total operating cost comparison between low-temp and high-temp machines depends on local electricity rates and chemical pricing.
The Poly Pro scrap accumulator filters wash water and captures plate debris in an external tray, preventing food soil from accumulating in the wash tank and maintaining wash quality throughout service. Auto start/stop makes operation straightforward for any staff member. Stainless steel construction throughout — cabinet, wash arms, and tank — provides the corrosion resistance needed for continuous chemical and hot water exposure. 1 HP wash pump. ETL-Sanitation, cULus.
Available in straight-through and corner configurations to match the dishwashing line layout of each specific installation. The machine ships with the external sump assembly and all necessary installation hardware. Service and parts support available through the CMA distributor network.
WARNING - CA Prop 65 | Dishwasher Type | Chemical / Low Temp |
|---|---|
| Racks Per Hour | 31 - 50 |
| Warewashing Features | Delime Cycle, Automatic Cleaning Cycle |
| Voltage | 115v/60hz/1ph |
| Amps (A) | 16 |
| Product Weight (lbs) | 262 |
| Product Width (in) | 25.75 |
| Product Length (in) | 25.75 |
| Product Height (in) | 60 |
| NSF Listed | No |
| Standard Warranty | 1yr parts/labor |
| Spec Sheet | View PDF |
| Manufacturer | CMA Dishmachines |
| MPN | E-AH-EXT |
| SKU | 3C383 |
