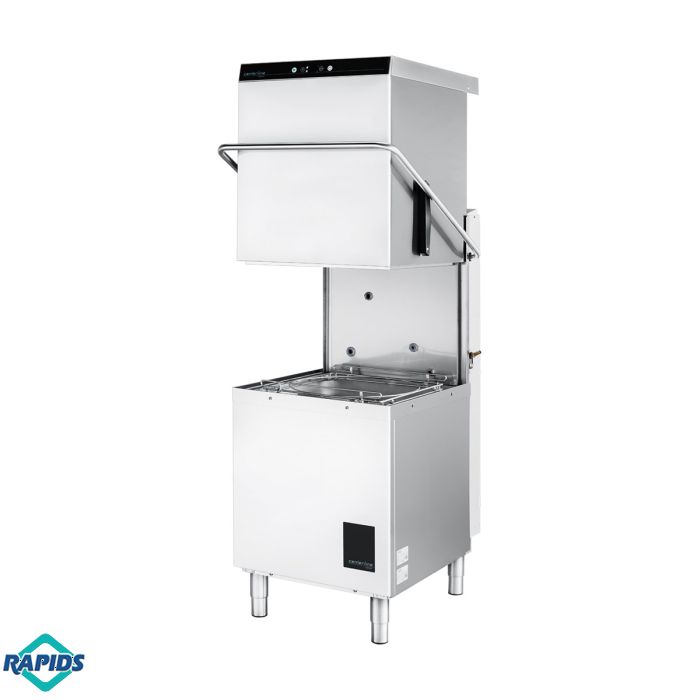

High Temp Sanitizing Door Type Dishwasher | Centerline By Hobart CDH-1
Centerline by Hobart CDH-1 High Temp Door Type Dishwasher | 51 Racks/Hr
Product Features:
- High temperature sanitizing
- 51 racks per hour throughput
- 0.73 gallons per rack water usage
- Recirculating design reduces water consumption vs fill-and-dump machines
- 18" pillarless vertical door opening
- Tri-prong revolving wash and rinse arms, low-profile, anti-clogging
- Built-in booster and electric tank heat
- Automatic pumped drain and pumped rinse
- Soft start for reduced mechanical stress
- Service diagnostics with error notifications
- Delime notification with cycle
- Top-mounted digital temperature and operator display
- Field-convertible from 3-phase to single-phase
- Straight-through or corner installation
- Includes 1 peg rack and 1 combination rack
- Stainless steel construction
- NSF, cULus, ENERGY STAR® certified
The Centerline by Hobart CDH-1 high temperature sanitizing door-type dishwasher by Hobart combines efficiency, durability, and sustainability for any commercial dishroom. With a throughput of 51 racks per hour and a water-saving recirculating system, this unit reduces consumption compared to traditional fill-and-dump washers. Its high temperature cycle, including a 180°F rinse, efficiently removes fats, oils, and residue, ensuring dishes and utensils meet the highest sanitation standards.
Constructed from stainless steel, the CDH-1 features an 18-inch pillarless vertical door, tri-prong revolving wash and rinse arms, soft start, built-in booster, automatic pumped drain, and service diagnostics with error notifications. Field-convertible from 3-phase to single-phase, the dishwasher includes a top-mounted digital temperature display, delime notification, and standard or extended cycle options. Ships with one peg rack and one combo rack for immediate use. This NSF- and cULus-rated unit delivers reliable performance while saving water, energy, and labor.
The Centerline by Hobart CDH-1 high temperature door-type dishwasher by Hobart is a robust and efficient solution designed to meet the demands of busy commercial kitchens, independent restaurants, and foodservice operations. Capable of washing up to 51 racks per hour, this unit maximizes throughput while maintaining the highest standards of cleanliness and sanitation. Its recirculating design significantly reduces water consumption to just 0.73 gallons per rack, nearly 50% less than traditional fill-and-dump dishwashers, making it an environmentally friendly and cost-efficient choice. The high temperature sanitizing cycle, which concludes with a 180°F rinse, ensures that grease, oils, and stubborn food residues are effectively removed, providing safe, hygienic dishes and utensils that comply with NSF and cULus standards.
Constructed of durable stainless steel, the CDH-1 features an 18-inch pillarless vertical door opening, allowing for easy loading and unloading of racks. Tri-prong, snap-in wash and rinse arms, designed with a low-profile, anti-clogging configuration, ensure thorough cleaning of every dish while minimizing maintenance and downtime. The dishwasher is equipped with a built-in booster, electric tank heat, pumped rinse, automatic pumped drain, and automatic fill system, providing consistent performance and simplifying operation for kitchen staff. Additional features such as soft start, delime notifications, and service diagnostics with error alerts give operators greater control, help prevent downtime, and extend the life of the machine.
User convenience is further enhanced with a top-mounted digital interface that displays temperature and operational status clearly, making monitoring and adjusting cycles simple. The unit is designed to accommodate both standard and optional extended cycles to meet varying kitchen demands. Flexible installation options, including straight-thru or corner placement, combined with field-convertible three-phase power, allow the dishwasher to fit virtually any dishroom configuration. The CDH-1 ships with one peg rack and one combination rack, providing immediate usability and enabling kitchens to maintain a smooth workflow. With Hobart’s trusted engineering and reliable performance, the Hobart CDH-1 ensures high-quality, efficient, and sustainable dishwashing for any commercial operation.
WARNING - CA Prop 65 | Dishwasher Type | High Temp |
|---|---|
| Racks Per Hour | 51 - 70 |
| Warewashing Features | Built-in Booster Heater, Delime Cycle, Automatic Pumped Drain |
| Voltage | 208-240v/60hz/3ph |
| Plug Type | Hardwire |
| Product Weight (lbs) | 232 |
| Product Width (in) | 24.125 |
| Product Length (in) | 25.8 |
| Product Height (in) | 62.9375 |
| NSF Listed | Yes |
| Energy Star | Yes | Rebate Finder Here |
| Standard Warranty | 1yr Parts/Labor |
| Manufacturer | Centerline by Hobart |
| MPN | CDH-1 |
| SKU | 3H524 |
