UBC 18 Gallon Glycol Chiller 1/2 Hp, 250' Run, Dual Pump

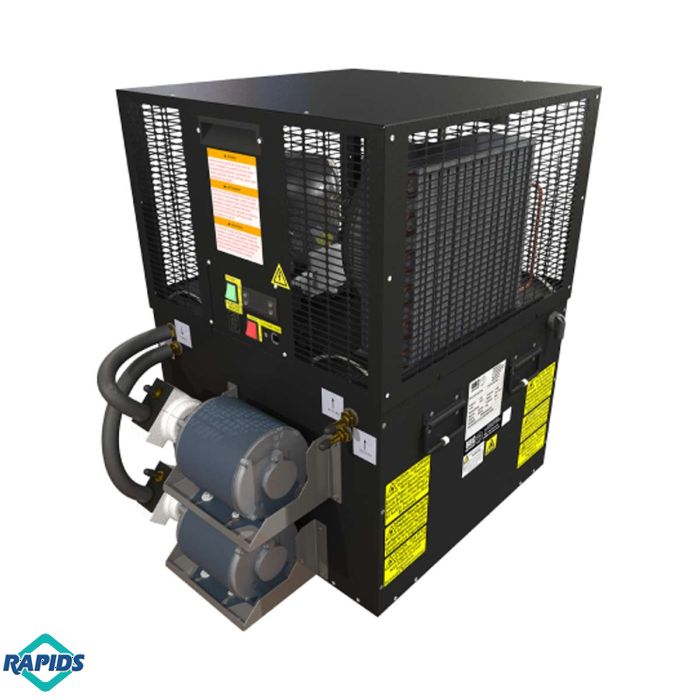

UBC CP4000-2 18 Gallon Glycol Chiller 1/2 Hp, 250' Run, Dual Pump
Product Features:
- Cooling capacity: 4,000 BTU/hr
- Glycol tank: 18 gallons
- Compressor: 1/2 HP
- Max run distance: 250'
- Pumps: 2 pre-installed (vane type, 1/3 HP, 80 GPH each)
- Running amps: 12.0 A (1 pump) / 17.6 A (2 pumps)
- Voltage: 115V/60Hz
- Plug: Hard Wire
- Inlet/outlet barb: 3/8"
- Refrigerant: R290
- Operating ambient: 60–90°F
- Glycol mix: 40% glycol / 60% water
- Required clearance: 12" around entire unit
The CP4000-2 is a commercial glycol chiller engineered to maintain draft beer line temperatures over distances up to 250 feet, supporting 2-pump operation with a 18-gallon glycol tank and 4,000 BTU/hr cooling capacity. Operating on R290 refrigerant with a 40% glycol / 60% water mixture, it keeps beer lines at serving temperature from keg coupler to faucet - eliminating foam caused by warm lines between pours.
The 1/2 HP compressor runs on 115V/60Hz and requires a minimum 12" clearance around the entire unit for proper airflow. The 3/8" inlet/outlet barbs connect to standard glycol trunk line fittings, and the unit operates reliably in ambient temperatures of 60–90°F. A proven glycol chiller solution for breweries, bars, and multi-tap draft installations requiring reliable temperature control over long runs.
The CP4000-2 glycol chiller is the refrigeration backbone of any long-run draft beer system - the equipment that keeps beverage lines at serving temperature from the keg room to the faucet, regardless of how far apart those two points are. Without a functioning glycol chiller, beer in long lines warms between pours and delivers the first glass of every service as foam - a problem that the CP4000-2 eliminates by continuously circulating chilled glycol through insulated trunk lines.
With a cooling capacity of 4,000 BTU/hr and a maximum run distance of 250 feet, the CP4000-2 is sized for medium-run draft installations - covering single-tap-room setups and standard restaurant bars. The 18-gallon glycol tank provides thermal mass to buffer against peak cooling demand during high-volume service periods.
Two vane pumps are pre-installed, each with a 1/3 HP motor delivering 80 GPH - the correct flow rate for maintaining glycol velocity through the trunk line without over-pressurizing the system. The 1/2 HP compressor operates on 115V/60Hz at 12.0 A (1 pump) / 17.6 A (2 pumps). The 3/8" inlet/outlet barbs are the standard connection size for commercial glycol trunk line systems.
R290 refrigerant is used throughout - a natural hydrocarbon refrigerant with minimal global warming potential and excellent thermodynamic efficiency. The unit operates reliably in ambient temperatures of 60–90°F°F, and requires at least 12" of clearance around the entire unit for proper airflow and service access. The glycol mixture specification of 40% glycol to 60% water is important to follow precisely - deviating from this ratio affects both freeze protection and heat transfer efficiency.
A commercial-grade glycol chiller for operators who understand that consistent beverage temperature is not optional - it's what separates a well-run draft system from one that wastes product and frustrates customers.
WARNING - CA Prop 65 | Horsepower | 1/2 |
|---|---|
| Number of Pumps | Dual Pump |
| Line Capacity (Feet) | 100 - 300 |
| Orientation | Vertical |
| Refrigerant Type | R290 |
| Capacity | 18 |
| BTU | 4000 |
| Voltage | 115v/60hz/1ph |
| Amps (A) | 15 |
| Plug Type | NEMA 5-15P |
| Product Weight (lbs) | 160 |
| Product Width (in) | 28.8 |
| Product Length (in) | 22.3 |
| Product Height (in) | 35.6 |
| Manufacturer | UBC |
| MPN | CP4000-2 |
| SKU | 3B323 |
