UBC QP3200V 3/8 HP Glycol Beer Chiller, 125' Run
UBC QP3200V 125 ft Run Glycol Beer Chiller System, 3/8 HP

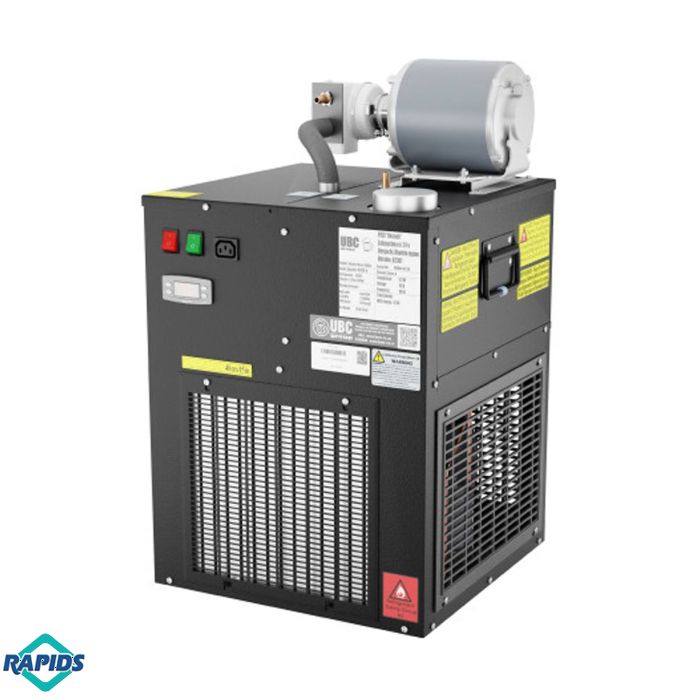

The UBC QuickPro 3200 vertical glycol chiller circulates a chilled glycol and water mixture alongside your beer lines, keeping draft beer cold over long distances between the keg cooler and the tap. It supports a maximum run of 125 ft and is powered by a 3/8 HP system.
Product Features
- QuickPro 3200 vertical glycol chiller
- 125 ft maximum run
- 3/8 HP
- Procon vane pump with 1/3 HP motor
- R290 hydrocarbon refrigerant
- Glycol mixture: 40% glycol, 60% water
- 115V/60Hz/1-phase, 11.7 amps
- NEMA 5-15P plug
A glycol system keeps beer temperature steady along the entire line, which matters when kegs are stored in a walk-in or back room far from the bar. The Procon vane pump moves the glycol mixture through the line, and the 40/60 glycol and water blend is the mixture this unit is specified for.
The chiller uses R290, a hydrocarbon refrigerant, and its vertical design gives it a narrower footprint than a horizontal unit, which helps in tight mechanical spaces.
This chiller is a good fit for bars, restaurants, and taprooms with a long draw run of up to 125 ft that need consistently cold, foam-free draft beer at the tap.
WARNING - CA Prop 65 | Horsepower | 3/8 |
|---|---|
| Number of Pumps | Single Pump |
| Line Capacity (Feet) | 100 - 300 |
| Orientation | Vertical |
| Refrigerant Type | R290 |
| Capacity | 2 gal Tank |
| BTU | 3200 |
| Voltage | 115v/60hz/1ph |
| Amps (A) | 11.7 |
| Plug Type | NEMA 5-15P |
| Product Weight (lbs) | 115 |
| Product Width (in) | 17 |
| Product Length (in) | 17 |
| Product Height (in) | 28 |
| Spec Sheet | View PDF |
| Manufacturer | UBC |
| MPN | QP3200V |
| SKU | 3B129 |
