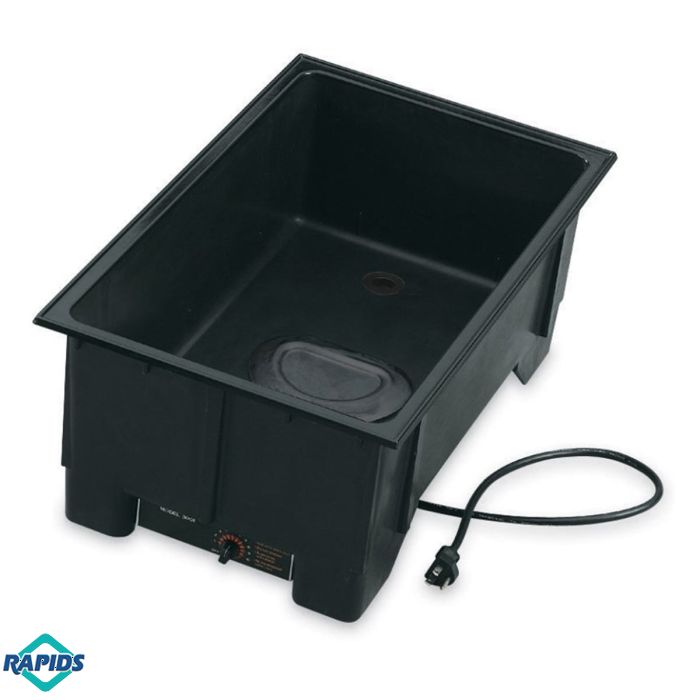

Vollrath 72105 Cayenne One-Well Full-Size Drop-In Warmer with Drain and Unit-Mounted Control Panel
Vollrath 72105 One-Well Full-Size Cayenne Drop-In Warmer with Drain and Unit-Mounted Control Panel
Product Features:
- Configuration: (1) well, 12" x 20" pan capacity
- Mounting: Drop-in (top mount)
- Control: Front-mounted dial, (10) temperature settings
- Lighted on/off switch
- Low-water indicator light
- Self-insulating energy-efficient thermoset well
- Drain: 3/4"
- 6' cord with NEMA 5-15P
- 700W, 120V/60/1-ph, 5.8 amps
- cULus, NSF
The Vollrath Cayenne one-well full-size drop-in warmer installs into a countertop opening, providing a built-in food holding solution with a clean, flush counter finish. The unit-mounted thermostatic control with 10 temperature settings provides precise warming control from the front of the unit. The self-insulating thermoset well maximizes energy efficiency, and the 3/4" drain simplifies cleaning. A lighted on/off switch and low-water indicator keep operators informed.
700W, 120V, 5.8 amps, NEMA 5-15P 6' cord. cULus, NSF.
The Vollrath Cayenne one-well drop-in warmer is the built-in food holding solution for commercial service counters designed with cut-out positions for drop-in well equipment. Unlike countertop warmers that sit on the counter surface, drop-in units install into a counter opening with the rim sitting flush on the counter surface — presenting the well opening at counter level for direct pan insertion without any height step-up. The result is a cleaner counter surface, a more professional appearance, and easier pan loading from the service side.
The unit-mounted thermostatic control is positioned at the front of the unit where it's accessible from the service side without reaching over or around the warmer. Front-access control is a practical design choice for drop-in equipment that may be surrounded by adjacent drop-in wells or fixed counter sections on other sides. Ten temperature settings across the dial's range provide the calibration needed to match the well temperature to the specific food being held.
The self-insulating thermoset well concentrates heat into the water bath rather than radiating it to the surrounding counter structure — important in a drop-in installation where the well is embedded in a counter material that can absorb heat from an uninsulated well. The insulating well material maintains the operating temperature efficiently while protecting the surrounding counter material from excessive heat exposure.
The 3/4" drain simplifies end-of-service cleaning. The lighted on/off switch and low-water indicator provide clear status information to service staff throughout the service period. 700W at 120V is appropriate for the one-well holding application — this unit is a holder, not a rethermalizer, and the 700W output maintains rather than rapidly heats.
WARNING - CA Prop 65 | Warmer Type | Rectangle |
|---|---|
| Capacity | Full Pan Size |
| Installation Type | Drop-In |
| Heating Element | Tubular |
| Control Type | Thermostatic Controls |
| Operation | Wet |
| Product Weight (lbs) | 15.22 |
| Product Width (in) | 21.75 |
| Product Depth (in) | 13.75 |
| Product Height (in) | 9 |
| Amps (A) | 5.8 |
| Voltage | 120v/50-60hz/1ph |
| Watts | 700 |
| Plug Type | NEMA 5-15P |
| NSF Listed | Yes |
| Manufacturer | Vollrath |
| MPN | 72105 |
| SKU | 2V083 |
