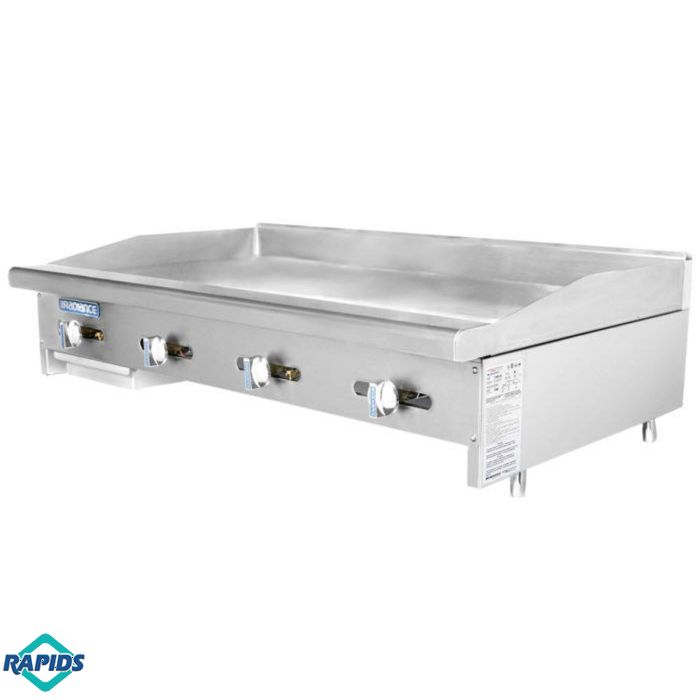

Turbo Air TAMG-48 Radiance 48" Manual Gas Countertop Griddle
Turbo Air Radiance TAMG-48 48" Manual Gas Griddle
Product Features:
- Width: 48"W x 30"D
- Burners: 4 aluminized U-shaped burners
- 22,000 BTU/hr per 12" of griddle width
- Total BTU: 88,000
- Griddle plate: 3/4" thick highly polished steel
- 16 ga. stainless steel front, sides, and 4" front top ledge
- 4" backsplash with tapered side splashes
- Individual on/off control per zone
- Heat-resistant PPS on/off knob
- 3" wide front grease trough
- Removable grease pan
- Built-in stainless steel splash guard
- Adjustable standing pilot per burner
- High efficiency — faster cooking, faster recovery, less gas
The Turbo Air Radiance 48" manual gas countertop griddle features 4 aluminized U-shaped burners (22,000 BTU/hr per 12" of width) delivering 88,000 BTU total under a 3/4" thick highly polished steel griddle plate. Individual manual on/off knobs per zone, 3" wide front grease trough, removable grease pan, built-in stainless steel splash guard with 4" backsplash and tapered side splashes. 16 ga. stainless steel front and side construction.
High efficiency griddle provides faster cooking and temperature recovery while using less gas. Adjustable standing pilot per burner. 3/4" rear gas connection, regulator included, 2" stainless steel legs. CSA, CSA-Sanitation.
The Turbo Air Radiance 48" manual gas countertop griddle is a high-efficiency flat-top cooking platform built for the full range of commercial griddle applications — eggs, pancakes, burgers, sandwiches, hash browns, vegetables, and any product that benefits from contact cooking on a flat, evenly heated surface. At 88,000 BTU total from 4 aluminized U-shaped burners, the unit delivers the heating power needed for continuous commercial production with fast temperature recovery between loads.
The 3/4" thick polished steel griddle plate is the core specification that determines griddle performance. Plate thickness determines thermal mass — the amount of heat energy the plate stores and can deliver when cold food contacts the surface. A 3/4" plate at commercial gauge provides enough thermal mass to absorb the cold-load shock of product placement without the dramatic temperature drop that thinner plates experience, recovering to cooking temperature faster and maintaining more consistent surface temperature through continuous production. The polished finish is the correct surface for the full range of griddle applications, developing appropriate non-stick seasoning through use.
Aluminized U-shaped burners are the high-efficiency burner geometry that differentiates the Radiance griddle from standard commercial griddles. The U-shape provides a longer burner path under the griddle plate, distributing heat more evenly across each 12" zone than straight-rod burners that heat primarily at their position. Aluminized steel construction resists the high-temperature oxidation that degrades burner performance over time in standard steel burners.
The 3" wide front grease trough runs the full width of the griddle plate, channeling rendered fat and cooking residues from the plate surface into the removable grease pan below. The front trough position is the natural collection point as grease flows toward the cook when the plate is tilted slightly forward, as commercial griddle plates are typically set. Removable grease pan simplifies end-of-service cleaning. Built-in splash guard with 4" backsplash and tapered side splashes contain grease and moisture within the griddle footprint.
Manual on/off controls per zone. Adjustable standing pilots. 3/4" rear gas connection with included regulator. 2" stainless steel legs. CSA and CSA-Sanitation certified.
WARNING - CA Prop 65 | Product Weight (lbs) | 386 |
|---|---|
| Product Width (in) | 48 |
| Product Depth (in) | 30.5 |
| Product Height (in) | 12.5 |
| BTU | 88000 |
| Exterior Material | Stainless Steel |
| Griddle Plate Thickness | 3/4" |
| Griddle Type | Griddle - Gas |
| Gas Connection | 3/4" NPT |
| Power Type | Select NG or LP |
| Control Type | Manual |
| Standard Warranty | 1yr Parts/Labor |
| Manufacturer | Turbo Air |
| MPN | TAMG-48 |
| SKU | 5R078 |
