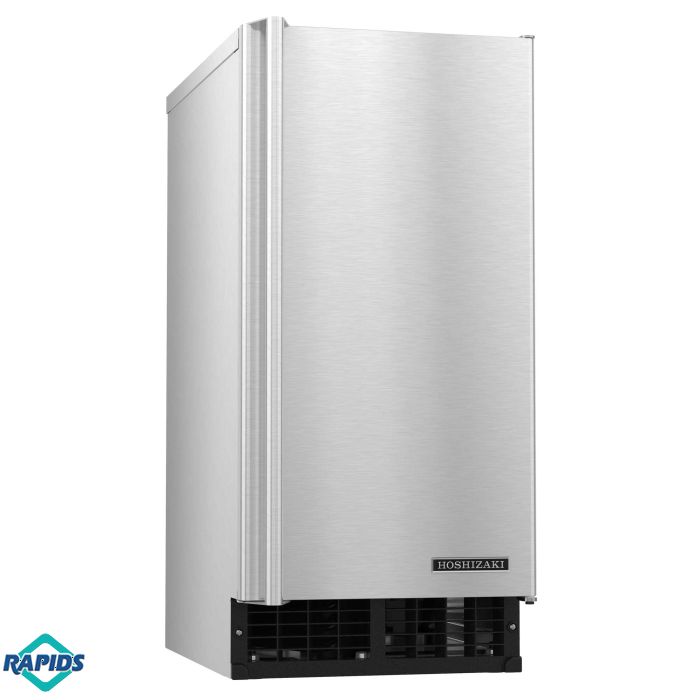

Hoshizaki Top Hat Cuber Icemaker, Air-Cooled, Built-In Bin | AM-50BAK | 55 lb. Capacity | ADA-Compliant
Hoshizaki AM-50BAK Top Hat Ice Maker 55 lb/Day with 22 lb Bin
Product Features:
- Production: up to 55 lb/24 hours
- Storage bin: 22 lb built-in capacity
- Top Hat full-cube ice
- ADA-compliant, undercounter design (<32")
- Stainless steel full-length handle
- Air-cooled, self-contained condenser
- Easily disassembled water circuit for cleaning
- Front airflow in/out
- 115V/60/1-ph, 3.8 amps
- UL approved for outdoor use
- R-290 Refrigerant
- NSF and UL certified
The Hoshizaki AM-50BAK Top Hat cuber ice maker delivers up to 55 lb of ice per day with a 22 lb built-in storage bin. Its Top Hat full-cube style produces uniform ice suitable for beverages and display. Designed for undercounter or built-in applications, it is ADA-compliant and less than 32" tall for accessibility.
Air-cooled and self-contained, the unit features a durable stainless steel handle, easily disassembled water circuit for cleaning, and front air intake/outflow for efficient operation. UL-approved for outdoor use, it operates on R-134a refrigerant and includes a 6 ft. power cord with NEMA 5-15 plug. The accessible power switch allows maintenance without removing panels. NSF and UL certifications ensure commercial safety and reliability.
The Hoshizaki AM-50BAK Top Hat Cuber Ice Maker with Built-In Bin is designed for commercial settings where space, efficiency, and accessibility are essential. This undercounter ice maker produces up to 55 lbs of high-quality Top Hat-style cubes per 24 hours at standard conditions, with a 22 lb built-in storage capacity for ready access to ice during peak service times. Its compact design keeps the unit under 32 inches tall, ensuring compliance with ADA standards, while the full-length stainless steel handle provides easy and sanitary access to the ice bin.
Built with an air-cooled, self-contained condenser, the AM-50BAK offers reliable operation with fewer moving parts, promoting longer service life and reduced maintenance requirements. The unit’s front in-and-out airflow and UL approval for outdoor use make it versatile for both indoor and semi-exposed environments. Its accessible power switch simplifies operation without requiring panel removal, adding convenience for busy kitchen staff.
Maintenance and sanitation are straightforward, thanks to the easily disassembled water circuit and NSF certification, ensuring hygienic operation and compliance with food safety standards. The ice maker uses R290 refrigerant and includes a 6 ft. power cord with a NEMA 5-15 plug, making installation simple and flexible. The self-contained system ensures consistent ice production with minimal operator intervention.
Ideal for bars, cafés, and small commercial kitchens, the Hoshizaki AM-50BAK balances compact design, reliable performance, and accessibility. Its ADA-compliant height, easy-to-clean water circuit, and durable stainless steel construction make it a practical solution for businesses needing consistent, high-quality ice in a space-efficient form.
| Product Weight (lbs) | 88 |
|---|---|
| Width | 0 - 22" |
| Product Width (in) | 14.87 |
| Product Depth (in) | 22.63 |
| Product Height (in) | 33.5 |
| Amps (A) | 15 |
| Voltage | 120v/60hz/1ph |
| Plug Type | NEMA 5-15P |
| Exterior Material | Stainless Steel |
| Ice Machine Type | Self-Contained Undercounter |
| Cube Type | Top Hat |
| Ice Production (lbs/day) | Under 500 |
| Ice Machine Compressor | Air-Cooled |
| Refrigerant Type | R290 |
| Standard Warranty | 2yrs Parts/Labor |
| Energy Star | No |
| Manufacturer | Hoshizaki |
| MPN | AM-50BAK-AD |
| SKU | 3H180 |
