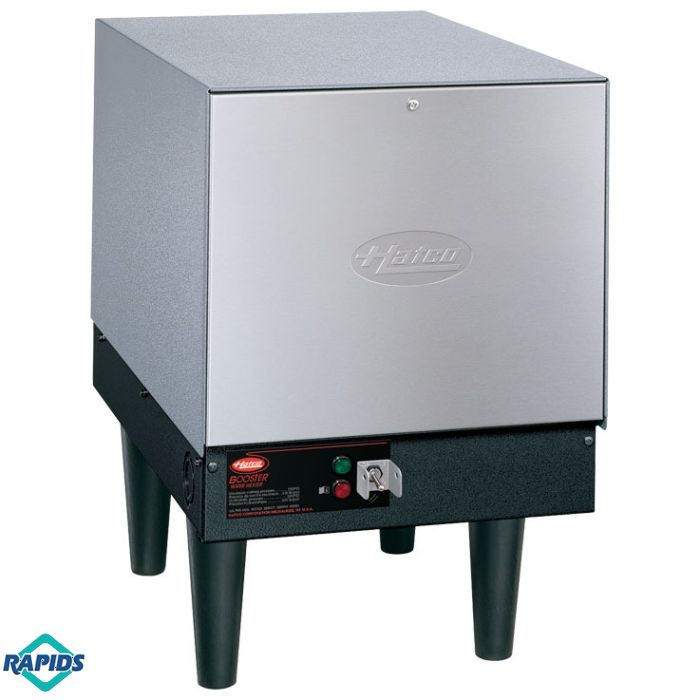

Hatco C-12-208 Booster Heater, 6 Gal Capacity
Hatco C-12-208 Electric Booster Heater | 6 Gallon, 12kW, NSF
Product Features:
- Compact electric booster heater with 6-gallon storage capacity
- Provides consistent 180°F (82°C) rinse water for sanitizing and drying dishes
- 12.0kW heating system, 208v/60/3-ph
- Castone® lined tank for corrosion resistance
- Stainless steel front panel with powder-coated silver-gray hammertone body
- Fiberglass insulation reduces heat loss
- Includes temperature/pressure relief valve, pressure reducing valve, dual gauges, and high-temperature limit control
- Pilot indicator light, on/off switch, and low-water cut-off for safety
- Swing-away front panels allow easy service access
- Supplied with 6" plastic legs (non-adjustable)
- NSF and cULus certified
The Hatco C-12-208 Compact Booster Heater delivers consistent 180°F rinse water for sanitizing and flash-drying dishes and flatware. With a 6-gallon storage capacity and a 12.0kW heating system, this electric booster is engineered for reliable performance in commercial dishwashing applications. The stainless steel front panel and powder-coated silver-gray hammertone body provide durability, while the Castone® lined tank ensures long-lasting protection against corrosion.
Standard features include a temperature/pressure relief valve, pressure reducing valve, dual temperature/pressure gauges, high-temperature limit control, pilot indicator light, on/off switch, and a low-water cut-off to prevent element burnout. The fiberglass insulation minimizes heat loss, and swing-away front panels allow easy access for servicing. Designed for efficiency and convenience, this NSF- and cULus-certified booster heater is ideal for installing directly beside the dishwasher using slide brackets or mounted on its included 6" legs.
The Hatco C-12-208 Compact Electric Booster Heater is designed to provide consistent, high-performance sanitation in commercial dishwashing operations. With a 6-gallon storage capacity, this reliable unit ensures an uninterrupted supply of 180°F (82°C) rinse water required for proper sanitization and flash-drying of dishes, glassware, and flatware. Compact in design, it saves valuable kitchen space and can be easily installed next to the dishwasher with included slide brackets or supported on its 6" plastic non-adjustable legs.
Built with durability in mind, the heater features a stainless steel front panel and a powder-coated silver-gray hammertone body for strength and corrosion resistance. Its Castone® lined tank provides long-lasting protection against mineral and lime buildup, extending the life of the unit while maintaining efficiency. The C-12-208 operates at 12.0 kW, 208V, 60 Hz, and 3-phase power, making it suitable for a wide range of commercial kitchen setups.
For added safety and performance, the unit is equipped with essential features including a temperature/pressure relief valve, pressure reducing valve, dual temperature/pressure gauges, and a high-temperature limit control. A pilot indicator light, on/off switch, and low-water cut-off protect the heating elements from burnout in low-water conditions. The 3/4" NPT pipe and fittings for water inlet and outlet simplify installation.
Energy efficiency is enhanced with fiberglass insulation that minimizes heat loss, ensuring reliable operation while reducing operating costs. Hatco factory pre-plumbs and pre-wires each booster heater, including a calibrated immersion thermostat and high-temperature limit switch, for faster setup and dependable performance.
Serviceability is also a key feature of the Hatco Compact series. The swing-away front panel provides quick access to probes, elements, control fuses, and the transformer, making maintenance faster and more convenient. NSF and cULus listed, the Hatco C-12-208 meets industry standards for sanitation and safety, giving operators peace of mind in demanding foodservice environments.
Ideal for restaurants, hotels, schools, and other high-volume facilities, the Hatco C-12-208 combines compact design, durable construction, and advanced safety features to deliver reliable hot water boosting where it’s needed most.
WARNING - CA Prop 65 | Capacity | 6 Gallon |
|---|---|
| Voltage | 208v/60hz/3ph |
| Watts | 12000 |
| Amps (A) | 33.4 |
| Product Weight (lbs) | 120 |
| Product Width (in) | 13.06 |
| Product Length (in) | 20.69 |
| Product Height (in) | 13.78 |
| NSF Listed | Yes |
| Standard Warranty | 1yr Parts/Labor, 10yr Castone Tank |
| Manufacturer | Hatco |
| MPN | C-12-208-3-QS |
| SKU | 5H758 |
