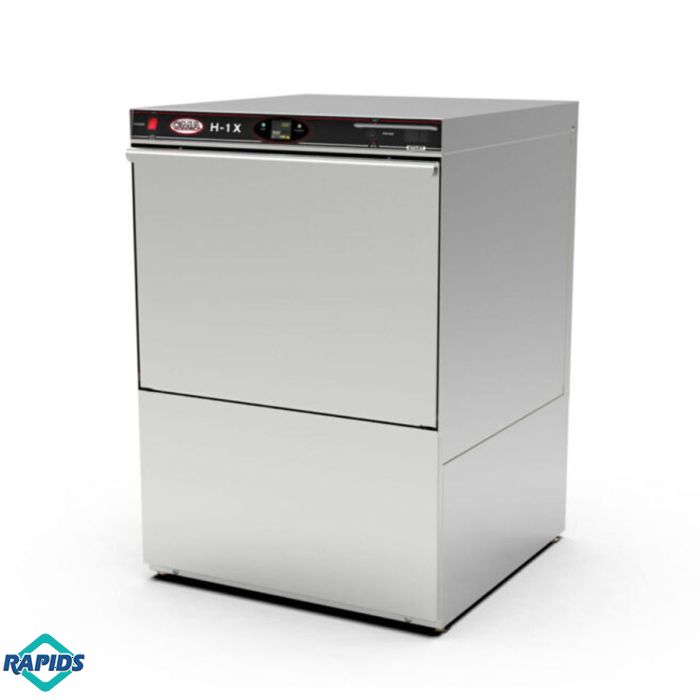

CMA H-1X Undercounter High Temp Sanitizing Glasswasher/Dishwasher, 24 Racks/hr
CMA H-1X Undercounter High Temp Glasswasher/Dishwasher | 24 Racks/hr | High Temp
Product Features:
- Dimensions: 23-7/8"W x 25"D x 33-1/2"H
- Capacity: 24 racks/96 covers per hour
- Door opening: 14-1/4"
- High-temperature sanitizing — 180°F final rinse every cycle
- Safe-T-Temp feature — confirms sanitizing temp compliance
- Built-in 5 kW booster heater
- 2 kW tank heater
- Built-in detergent and rinse chemical pumps
- Pumped drain — flexible installation including elevated drains
- Dump & Fill cycle — drains and refills with fresh hot water every cycle
- Removable upper and lower wash and rinse arms — easy cleaning
- Triple filtering protection system
- Stainless steel safety filters for wash pump
- Door and water level safety switches
- 1 HP wash pump
- Stainless steel construction with rounded corners
The CMA undercounter high-temperature dishwasher, 23-7/8" wide, delivers 24 racks/96 covers per hour with 180°F high-temp sanitizing — no chemical sanitizer required, reducing chemical cost and eliminating the need for chemical monitoring. The built-in 5 kW booster heater ensures the final rinse reaches 180°F every cycle regardless of incoming water temperature, and the Safe-T-Temp feature confirms sanitizing temperature compliance on every wash cycle. The unique Dump & Fill cycle completely drains the wash water after every cycle and refills with fresh hot water for the sanitizing rinse — preventing the soil and chemical carryover that accumulates in standard recirculating dishwashers and maintaining fresher, cleaner wash water throughout service.
The 14-1/4" door opening accommodates oversized plates, glasses, and utensils that smaller-opening machines cannot handle. Built-in detergent and rinse chemical pumps provide consistent chemical dosing. Removable upper and lower wash and rinse arms allow easy access for cleaning. Pumped drain allows flexible installation including elevated drain connections. Stainless steel construction throughout. NSF, ETL.
The CMA H-1X is a high-temperature undercounter dishwasher that sanitizes through heat rather than chemical sanitizers — reaching 180°F on the final rinse every cycle to achieve the pathogen elimination that health codes require. At 24 racks/96 covers per hour in a compact 23-7/8"W x 25"D x 33-1/2"H footprint, it provides the washing capacity that fits under a bar, prep counter, or small commercial kitchen installation where a full-size door-type machine is not practical or necessary.
The Dump & Fill cycle is the sanitation-focused design distinction of this model. Rather than recirculating the same wash water throughout the cycle — which allows soil, food particles, and detergent residue to accumulate — the H-1X drains the wash water completely after every cycle and refills the tank with fresh hot water for the sanitizing rinse. This prevents the cross-contamination that builds up in recirculating machines over the course of a service shift, and ensures that the final rinse water going onto dishes is always clean.
The built-in 5 kW booster heater is what makes 180°F rinse compliance reliable rather than conditional. Without a booster heater, final rinse temperature depends entirely on the incoming hot water supply temperature — which varies with building plumbing, time of day, and simultaneous hot water demand elsewhere in the operation. The booster heater raises incoming water to 180°F regardless of supply temperature, ensuring every cycle meets the sanitizing standard that health inspectors verify. The Safe-T-Temp feature confirms temperature compliance on every wash cycle, providing documentation assurance that the machine is performing to specification.
The 14-1/4" door opening is sized to accommodate oversized commercial plates, tall glasses, and sheet pans that smaller-opening machines cannot handle — a practical specification detail that affects the machine's usefulness for the full range of dishware and glassware in real commercial operations. Built-in detergent and rinse chemical pumps provide consistent chemical dosing without manual measurement or adjustment. The 2 kW tank heater maintains wash water temperature throughout service, and the pumped drain allows flexible installation including locations with elevated drain connections that gravity-drain machines cannot accommodate.
Removable upper and lower wash and rinse arms allow thorough cleaning of the spray mechanism without tools or disassembly — making the daily cleaning that sanitation compliance requires practical rather than burdensome. Stainless steel construction throughout provides the corrosion resistance needed for continuous exposure to hot water, detergents, and sanitizing chemicals. Rounded interior corners eliminate the soil-trapping edges that right-angle corners create. 1 HP wash pump. NSF, ETL.
WARNING - CA Prop 65 | Dishwasher Type | High Temp |
|---|---|
| Racks Per Hour | 15 - 30 |
| Warewashing Features | Built-in Booster Heater, Automatic Pumped Drain |
| Voltage | 208-240v/60hz/1ph |
| Amps (A) | 24 |
| Product Weight (lbs) | 165 |
| Product Width (in) | 23.88 |
| Product Length (in) | 25 |
| Product Height (in) | 33.5 |
| NSF Listed | Yes |
| Standard Warranty | 1yr parts/labor |
| Spec Sheet | View PDF |
| Manufacturer | CMA Dishmachines |
| MPN | H-1X |
| SKU | 3C372 |
