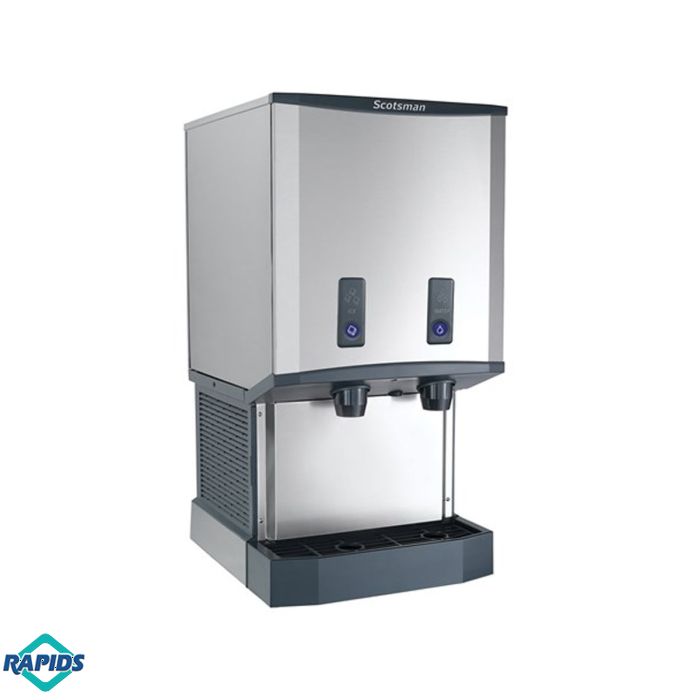

Scotsman HID540ABX-1 Meridian Nugget Ice & Water Dispenser with Bin | 500 lb Production | Push Dispense
Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF
NOTE: Shown with optional adjustable legs (sold separately).
Scotsman HID540ABX-1 Meridian Nugget Ice & Water Dispenser 500 lb
Product Features:
- Up to 500 lb daily production of H² Nugget Ice
- 40 lb storage bin
- Push-button dispensing for reliable operation
- Durable stainless steel exterior and evaporator
- Sealed, maintenance-free bearings
- Fully removable bin, air filter, sink, and spouts for easy cleaning
- AgION™ antimicrobial protection
- SmoothStream™ water dispensing reduces splashing
- Enlarged 11" dispensing area and 0.8" sink drain
- Compact footprint with contoured sides for airflow
- LED diagnostic lights and USB software upgrade port
- R290 refrigerant, 115V/60/1-ph, 9.0 amps
- NSF and cULus certified
The Scotsman HID540ABX-1 Meridian countertop ice and water dispenser produces up to 500 lb of H² Nugget Ice per day with a 40 lb storage bin. Push-button dispensing delivers reliable operation, while the stainless steel exterior and evaporator ensure long-lasting durability for commercial environments.
Maintenance is easy with fully removable bin, air filter, sink, and spouts. Sealed, maintenance-free bearings reduce service requirements, and SmoothStream™ water dispensing minimizes splashing. AgION™ antimicrobial protection helps prevent microbial growth. Designed with a compact footprint, the dispenser includes an enlarged 11" dispensing area, 0.8" sink drain, LED diagnostic lights, USB software upgrade port, and a unit-specific QR code for easy access to manuals and warranty information.
The Scotsman HID540ABX-1 Meridian Nugget Ice & Water Dispenser is a high-capacity, commercial-grade ice and water solution designed for demanding environments such as restaurants, bars, healthcare facilities, hotels, and office spaces. This air-cooled unit produces up to 500 lbs of H² Nugget Ice per 24 hours at standard conditions, with 365 lbs AHRI certified at elevated temperatures, and features a 40 lb storage bin, providing consistent ice availability for high-volume service. Push-button dispensing delivers reliable, user-friendly operation, while the slow-melting, chewable nugget ice enhances beverage presentation, maintains cold temperatures longer, and minimizes dilution, making it ideal for soft drinks, cocktails, smoothies, and other cold beverages.
Sanitation is prioritized in the HID540ABX-1. Key components incorporate AgION and antimicrobial compounds to inhibit bacterial growth, mold, and algae. The fully removable bin, spouts, sink, air filter, and grill make cleaning and maintenance fast and easy. The sealed refrigeration system minimizes outside airborne contamination, and SmoothStream™ water dispensing reduces splashing to keep the surrounding area clean. A front-accessible removable air filter simplifies routine upkeep.
Designed for reliability and efficiency, the dispenser uses sealed, maintenance-free bearings to reduce preventative maintenance. Its space-maximizing design—the smallest operational footprint relative to capacity—is complemented by contoured sides for improved airflow and cooling performance. Durable stainless-steel evaporator and exterior panels provide long-lasting operation, while an enlarged 11" dispensing area and 0.8" sink drain accommodate taller containers and high-volume use. The unit also includes a QR code for quick access to service manuals and warranty information, intuitive LED diagnostic lights, and a USB port for fast software updates, ensuring minimal downtime.
The HID540ABX-1 combines high-capacity ice production, slow-melting nugget ice, sanitation-focused features, and advanced service capabilities. Its industry-leading energy and water efficiency, quieter operation, and robust construction make it a complete solution for operators seeking reliable, hygienic, and efficient ice and water dispensing in commercial settings.
WARNING - CA Prop 65 | Product Weight (lbs) | 215 |
|---|---|
| Width | 0 - 22" |
| Product Width (in) | 21.25 |
| Product Depth (in) | 24.38 |
| Product Height (in) | 41 |
| Amps (A) | 9 |
| Voltage | 120v/60hz/1ph |
| Plug Type | NEMA 5-15P |
| Exterior Material | Stainless Steel |
| Ice Machine Type | Ice Maker / Water Dispenser |
| Cube Type | Nugget |
| Ice Production (lbs/day) | 500 - 800 |
| Ice Machine Compressor | Air-Cooled |
| Refrigerant Type | R290 |
| Standard Warranty | 3yrs Parts/Labor; 5yrs Compressor |
| Energy Star | No |
| Manufacturer | Scotsman |
| MPN | HID540ABX-1 |
| SKU | 4S645 |
