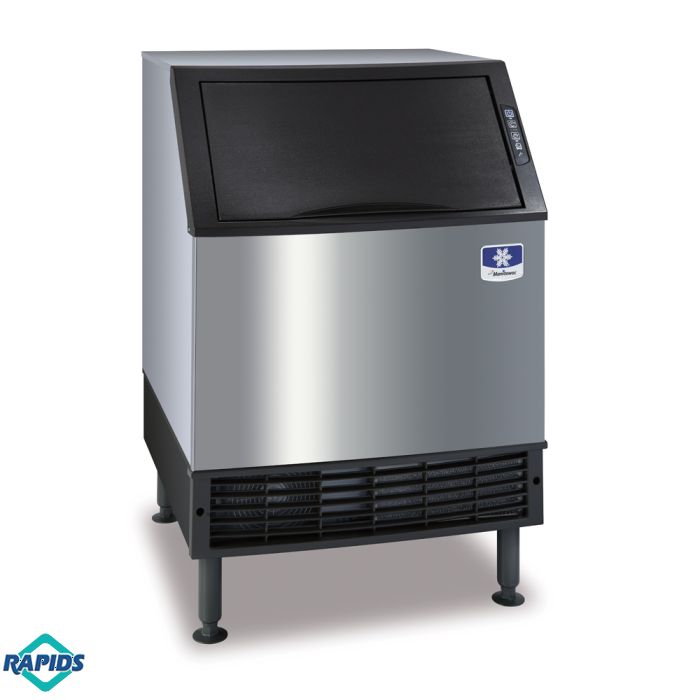

Manitowoc NEO U-190 Self Contained Air Cooled Ice Machine (190 lb cap)

Be the first to review this product

Item #: Manitowoc U-190
This item ships free when your subtotal is greater than or equal to $299

Quick Overview

NEO offers an all-in-one solution to your undercounter ice cube needs. Perfect for restaurants, bars, cafés, coffee shops, stadium boxes, offices, medical uses, delis, churches and more. NEO is designed to deliver ice wherever you need it.

Up to 198 lb daily production of ice, 26"W x 28"D x 38-1/2"H, 153 lbs.

More Views

  • Manitowoc NEO U-190 Self Contained Air Cooled Ice Machine (190 lb cap)
  • Manitowoc NEO U-190 Self Contained Air Cooled Ice Machine (190 lb cap)
  • Manitowoc NEO U-190 Self Contained Air Cooled Ice Machine (190 lb cap)

* Required Fields



Stainless steel, air cooled compact intelligent ice maker that produces up to 193 to 198 lbs of ice daily. NEO undercounter ice machines are designed to provide ice right where you need it – within reach. Improvements in Performance, Intelligence and Convenience make your ice machine easy to own and less expensive to operate.

Performance of the NEO U-190

The NEO U-190 produces more ice than ever before, now up to 198 lbs daily, using less water and energy. The U-190's storage bin provides industry leading capacity at up to 90 lbs of manufactured ice.

Intelligence and the NEO U-190

The NEO U-190 features an interface panel conveniently located next to the bin door which provides useful information and feedback on the status of the machine. There are indicators that provide information about whether or not the bin is currently full, when it is time for a routine cleaning, and when service is required. There is also a delay function that allows an operator to pause production during slow periods of the work day, or for days when your facility may be closed for business.

Convenience Working with the NEO U-190

NEO offers many design features that make operation and maintenance easy. There is a forward-sliding storage bin for easy access to refrigeration components without have to move the entire ice machine. The food zone is smooth and sealed for easy wipe down. The water trough, distribution tube, and damper door are all removable for faster and more thorough cleaning. AlphaSan, a microbial, has been utilized on key internal components.

Airflow has been engineered so air comes in through the front of the unit on the right side, circulate within the machine, and ultimately exit through the front right side. This design makes the unit ideal for installation under countertops or next to other equipment. The air filter can be removed from the front easily without the need for any specialized tools.

Manitowoc NEO U-190 Specifications and Certifications

  • BTU per hour: 2,150 (average), 2,600 (peak)
  • Compressor Nominal rating: .42 HP
  • Operating limits: Ambient temp range 40° to 110°F. Water temp range 45° to 90°F. Water pressure in range 20 psi to 80 psi
  • UL, NSF, ARI, CE

Manitiowc NEO U-190A Commercial Warranty and Shipping Information

  • Ice Maker: 3 Years Parts and Labor
  • Evaporator: 5 Years Parts and Labor
  • Compressor: 5 Year Parts, 3 Year Labor

Ships from IA, MN, NC, WI.

Additional Information

Ice Production (lbs/day) Under 500
Width 22 - 30"
Energy Star Yes
Brand Manitowoc
MPN U-190
